Archify Diagrams

<img src="webui/thumbnail.webp" alt="Archify Diagrams" width="96" align="right">

Ask Agent Zero for a diagram in plain language. The agent uses the archify_diagram tool to write typed Archify JSON, validates schema and layout, then renders it locally with the bundled Archify 3.1.0 runtime. Rendering needs no external API or network.

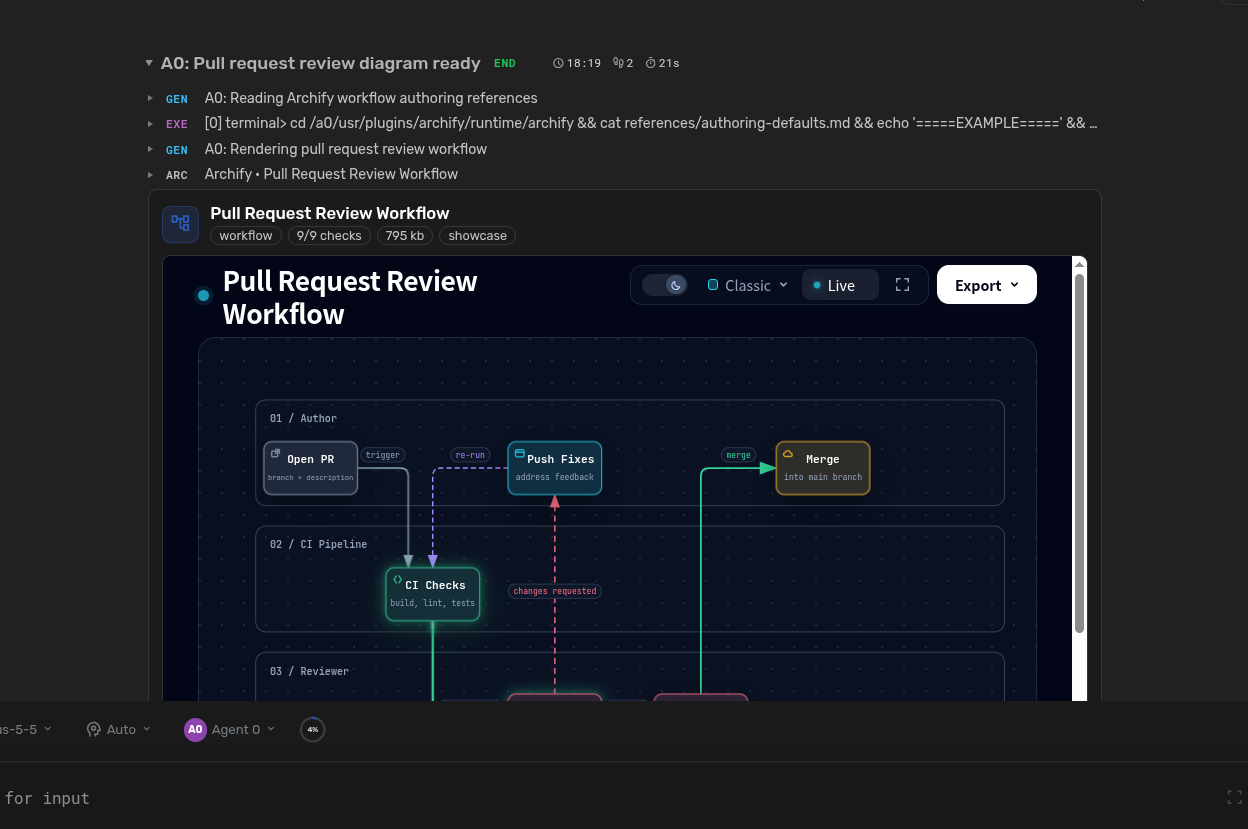

Archify workflow diagram in Agent Zero chat

Features

  • Ten types: architecture, workflow, sequence, dataflow, lifecycle, ERD, class, tree, timeline, waterfall
  • Chat cards with live interactive preview (on by default); optional right canvas (off by default)
  • Viewer: pan/zoom, search, focus, light/dark themes
  • Exports: PNG, SVG, WebM, plus downloadable standalone HTML
  • Per-project settings for display, quality and output
  • Diagrams stay on disk after uninstall

Try

  • "Diagram our pull request review workflow"
  • "Map this service architecture"
  • "Show the order lifecycle"

Built on Archify. MIT licensed; third-party asset notices retained.
